EFA-Series

Summary and Description:

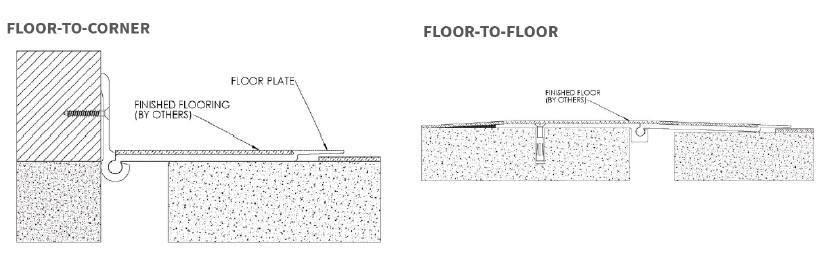

The Single Wing Hinged Flooring Infill System is designed with a hinged cover to accommodate horizontal and vertical thermal movement. This surface mounted system is designed to integrate with carpet and VCT flooring and provides a minimal sight line.

Features and Benefits:

HINGED DESIGN: Constructed with a single wing, hinged design to allow for limited vertical movement.
INTEGRATED FLOORING: Designed to coordinate with main flooring material and accepts floor infill.
SURFACE MOUNT: No block out is required. Simply screw onto subfloor.

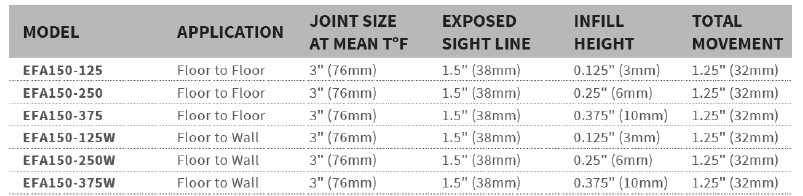

Details:

MATERIAL: 6063-T6 Aluminum
FINISH: Mill
MOVEMENT: Thermal, Horizontal, Vertical
MOUNTING: Surface
JOINT SIZE: 3"
LENGTH: 10 linear feet
LOAD: Pedestrian and Light Cart
INSTALLATION: Floor
OPTIONS: Moisture barrier, fire barrier
