ELCA-Series

Summary and Description:

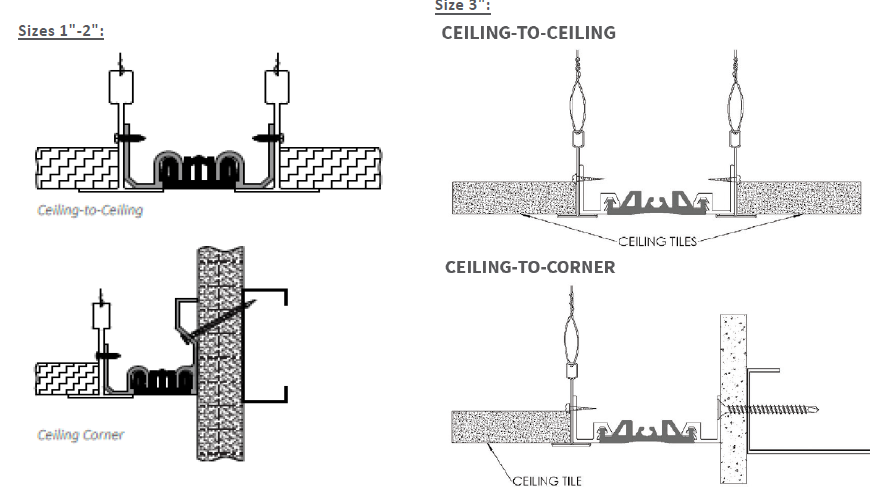

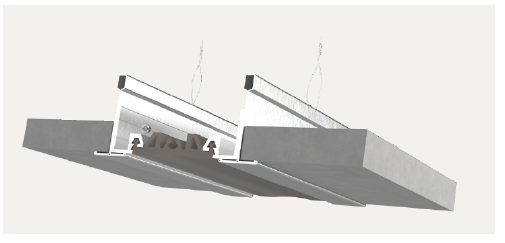

This Elastomeric Acoustical Ceiling System limits the sight line of the expansion joint by using an aluminum channel that attaches to the grid system above the sight line. The finished Santoprene seal comes in four colors to match your surrounding substrate and finish material.

Features and Benefits:

ACOUSTIC CEILING: Fully integrated with suspended ceiling grid system.
COMPLEMENTARY SEAL COLORS: Available in four elastomeric seal color options: beige, white, gray or black.
CONTINUOUS SIGHT LINE: This system can be used on walls, ceilings and corners to provide seamless and continuous aesthetics.

Details:

MATERIAL: 6063-T6 Aluminum with Rubber Seal
FINISH: Mill
MOVEMENT: Thermal (Horizontal)
MOUNTING: Flush - Suspended

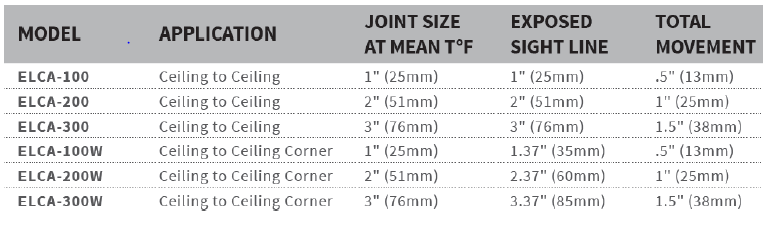

JOINT SIZE: 1" to 2"
LENGTH: Continuous
INSTALLATION: Ceiling
OPTIONS: Seal color
