ELCF/S/C/T-Series

Summary and Description:

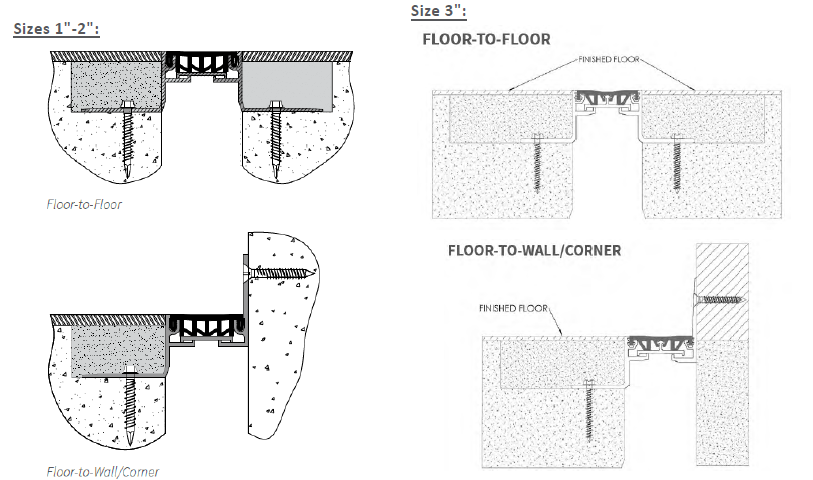

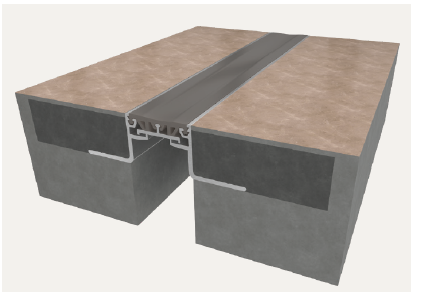

This Elastomeric System is built to last. The system’s extruded aluminum base is installed
in a concrete block out channel and backfilled in. Integrated into the system is a colored
rubber seal that expands and compresses with horizontal movement.

Features and Benefits:

COORDINATING CORNERS: Available with corner option for a complete floor solution.
CONTINUOUS SIGHT LINE: Available with coordinating wall and ceiling systems to provide an aesthetically pleasing appearance.
COMPLEMENTARY SEAL COLORS: Available in four elastomeric seal color options: beige, white, gray, or black.

Details:

MATERIAL: 6063-T6 Aluminum
FINISH: Mill and Rubber Seal
MOVEMENT: Thermal, Horizontal
MOUNTING: Block-out or Surface

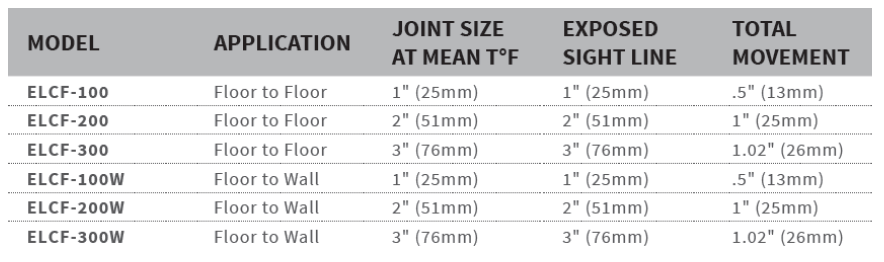

JOINT SIZE: 1" or 2"
LENGTH: 10 linear feet
LOAD: Pedestrian and Light Cart
INSTALLATION: Floor
OPTIONS: Seal color, moisture barrier, fire barrier

ELCF Product Data Sheet

ELCF Installation Instructions

ELCF Specifications

ELCF Drawings (PDF)
