ELCW/F/M-Series

Summary and Description:

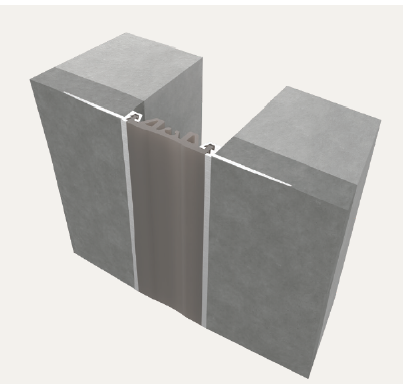

The Elastomeric Corridor System limits the sight line of the expansion joint by mounting inside the joint opening. Available in a variety of attachment solutions for various applications with standard Santoprene color selection to match your surrounding substrate and finish material.

Features and Benefits:

COMPLEMENTARY SEAL COLORS: Available in four elastomeric seal color options: beige, white, gray, or black.
QUICKER INSTALLATION: Reduce installation time and labor costs with fast and easy installation.
CONTINUOUS SIGHT LINE: This system can be used on walls, ceilings, and corners to provide seamless and continuous aesthetics.

Details:

MATERIAL: 6063-T6 Aluminum with Rubber Seal
FINISH: Mill
MOVEMENT: Thermal (Horizontal)
MOUNTING: Flush

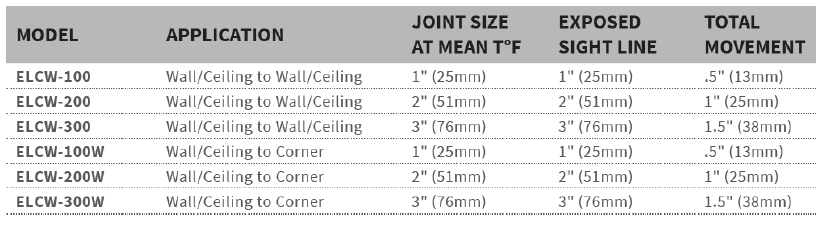

JOINT SIZE: 1" to 2"
LENGTH: Continuous
INSTALLATION: Wall or Ceiling
OPTIONS: Moisture barrier, fire barrier, seal color





ELCW/F/M Product Data Sheet

ELCW/F/M Installation Instructions

ELCW/F/M Specifications

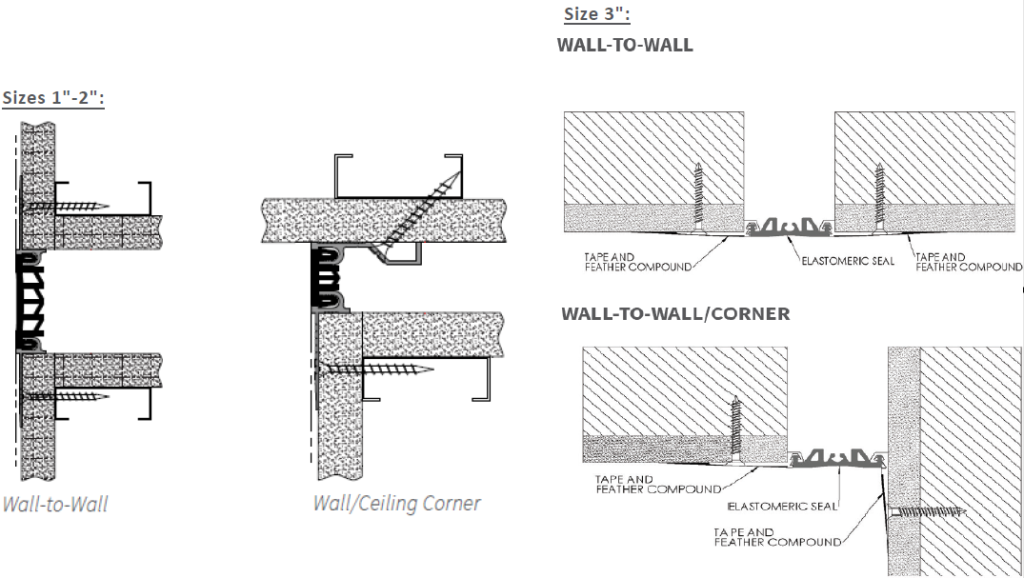

ELCW/F/M Drawings (PDF)
