Horizontal Applications (Foam)

Click HERE for Dow Corning ® 790 Color Chart
Click HERE for Pecora Color Chart
Image Product Name Features and Benefits Pre-Compressed? Movement Capabilities Available Joint Sizes
CST CST-Series   (Traffic Grade)   ♦ For use in horizontal applications, where there needs to be resistance to typical roadway traffic or chemicals found on roadways, bridges, garages, plaza decks and other areas that may be a concern
♦ Can accommodate rapid rates of joint movement
♦ Excellent compression recovery
♦ Does not rely on the silicone coating or the adhesion of a field applied bead of sealant to provide a watertight seal
♦ Permanently conforms to varying joint contours
♦ Consistent depth of product
♦ Not based on asphaltic or bitumastic impregnation
♦ Resilient and flexible to –40°F (long term)
♦ Standard Color: Gray
♦ Sizes available in 1/4” increments
YES +/- 50%

1/2" to 6"

(12.7 mm to 152.4)

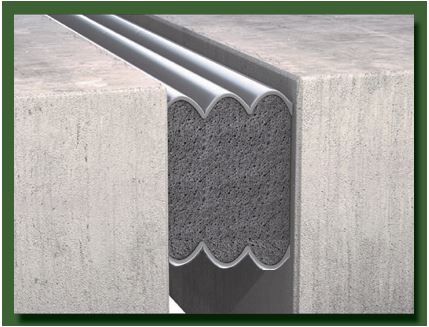

 CST(DS) CST(DS)-Series

♦ For use in horizontal applications, where there needs to be resistance to typical roadway traffic or chemicals found on roadways, bridges, garages, plaza decks and other areas that may be a concern
♦ Double sided silicone facing allows for top/bottom aesthetics
♦ Resilient and flexible up to -40°F (long term)
♦ Standard color: Gray
♦ Sizes available in 1/4" increments

 YES  +/- 50%  1/2" to 6"

(12.7 mm to 152.4)

CSS(H)-Series

♦ Can accommodate rapid rates of joint movement
♦ Supplied in pre-compressed state for ease of installation
♦ Two-part epoxy supplied for installation in horizontal applications
♦ Does not rely on the silicone coating or on the adhesion of a field applied bead of sealant to provide a watertight seal
♦ Consistent depth of product
♦ Excellent compression recovery
♦ Permanently elastic and weather-tight
♦ Allows for up to 100% (+50% movement)
♦ Not based on asphaltic or bitumastic impregnation
♦ Available in Dow Corning® 790 and Pecora 890 Colors: Actual Colors may vary. See Dow Corning® 790 and Pecora 890 Color Chart for exact color match.
♦ Sizes available in 1/4” increments

 YES  +/- 50%  1/2" to 8"

(12.7 mm to 203.2)

 CSEVA-Series  ♦ Can accommodate rapid rates of joint movement
♦ Made from a monolithic piece of foam that will not delaminate like multi-layer products
♦ Consistent depth of product
♦ Used for joints up to 12” wide
♦ Allows for up to 50% (+25%) movement
♦ Can be permanently bonded to the joint substrate
♦ Not based on asphaltic or bitumastic impregnation
♦ Environmentally safe; no ChloroFluoroCarbons (CFCs)
♦ Sizes available in 1/4” increments
YES + 25%

1/2" to 8"

 (12.7 mm to 203.2)
