CSBHT-Series (Bridge and Highway)

Summary and Description:

The Bridge and Highway Traffic-Grade Compression Seal (CSBHT) is composed of an open micro-cell polyurethane foam impregnated with a hydrophobic polymer sealing compound. It has been developed to meet the high performance needs of state and federal DOT projects.

The CSBHT seals have constant internal forces built into each cell. These cells continuously push against each other and the sidewalls of an opening to provide a permanent, watertight seal, eliminating costly water damages as well as allowing for a greater degree of joint movement. The seal incorporates a factory applied traffic-grade silicone coating on one side of the foam seal.

The CSBHT system provides a waterproof, dustproof, airtight, UV stable, chemically resistant, soundproof and insulated primary seal. Once the CSBHT is installed in the joint, the material expands depending on temperature, adapting to the width of the joint and the irregularities of the substrate provided such profile changes are not sudden or extreme.

Recommended for use in applications in the horizontal position, where there needs to be resistance to typical roadway traffic or chemicals found on roadways, bridges, garages, plaza decks and other areas that may be a concern.

Features and Benefits:

♦ Can accommodate rapid rates of joint movement
♦ Supplied in pre-compressed state for ease of installation
♦ Excellent compression recovery
♦ Permanently conforms to varying joint contours

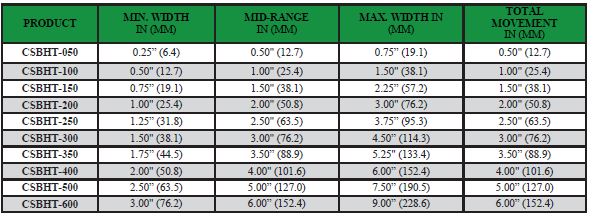

♦ Allows for up to 100% (+/- 50%) movement from mean joint size
♦ Consistent depth of product
♦ Not based on asphaltic or bitumastic impregnation
♦ Resilient and flexible to -40*F (long term)
♦ Standard color: black, gray, dark gray
♦ Sizes available in 1/4" increments
♦ LEED Credits - Up to two (2) LEED credits depending on the location of the project
