EB-Series

Summary and Description:

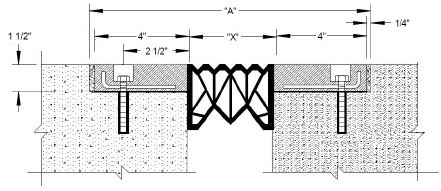

The EB-Series Elastomeric Block System is specifically designed for parking deck applications. It features a continuously extruded elastomeric membrane, which is securely sandwiched to the concrete deck with the use of steel reinforced anchor blocks. Once installed, this system provides a watertight seal which moving in response to fluctuations in joint width.

The design of the block incorporates the durability of armored joint systems with the flexibility of an elastomeric compound. The steel reinforced sections are heat and pressure molded into blocks using an ethylene propylene diene monomer (EPDM) elastomeric compound. The EPDM blocks absorb and dissipate the shocks from the impacts of vehicular traffic.

The center portion of the system incorporates a seal made of thermo-rubber Santoprene. The multi-chambered seal incorporates extruded wing flanges that are designed to provide a gasket type seal against the intrusion of water.

EB Product Data Sheet

EB Installation Instructions

EB Specifications

EB Drawings (PDF)

EB Drawings (DWG)
