Summary and Description:

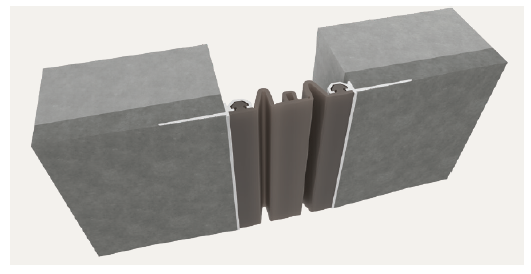

This Seismic Elastomeric Drywall System limits the sight line of the expansion joint by using a drywall bead to mount the system outside the joint opening with a finished tape and mud process. The finished Santoprene seal comes in four colors to match your surrounding substrate and finish material. This system accommodates seismic movement.

Features and Benefits:

MAXIMUM MOVEMENT: ā€œVā€ seal design allows for maximum thermal and seismic movement.

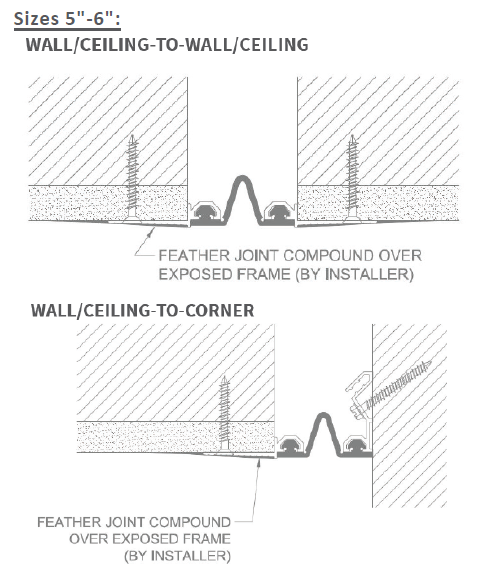

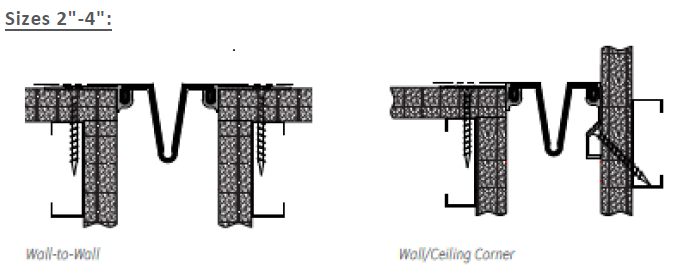

DRYWALL BEAD FLANGE: Designed for drywall applications with punched holes for easy mounting. Drywall mud is floated overtop of flange and easily painted leaving only the seal exposed.
COMPLEMENTARY SEAL COLORS: Available in four elastomeric seal color options: beige, white, gray, or black.


MATERIAL: 6063-T6 Aluminum, Meets ASTM B209 with Rubber Seal
MOVEMENT: Thermal (Horizontal); Seismic (Lateral Shear)
MOUNTING: Flush with Drywall Bead

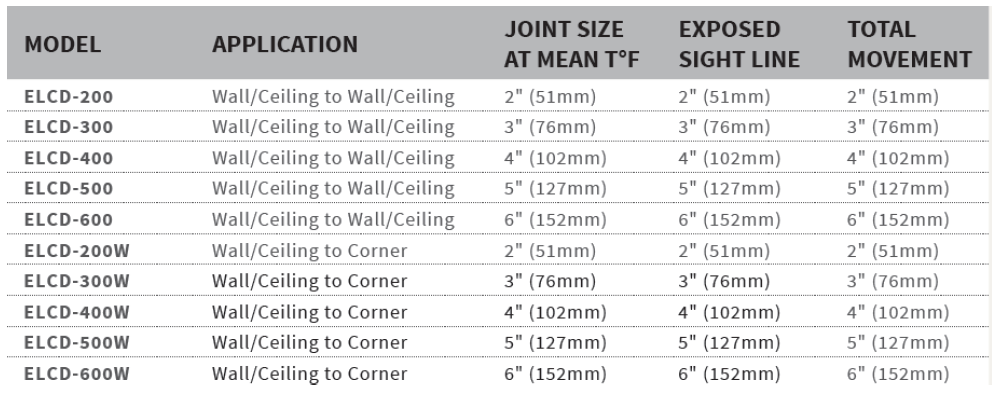

JOINT SIZE: 2" to 6"
LENGTH: Continuous
INSTALLATION: Wall or Ceiling
OPTIONS: Seal color, additional size and material options available upon request.
