Summary and Description:

The Seismic Glide System wall and ceiling expansion control system is capable of multi-directional changes, as well as integrating with a variety of wall and ceiling surface treatments. The Seismic Glide System is available in clear anodized aluminum to create a sleek look at an economical price.

Features and Benefits:

COORDINATING CORNERS: Available with corner option for a complete solution.
GASKETS: The assembly includes a gasket strip on either side to limit air flow in the joint.
EASY ASSEMBLY: After base plates are attached to the wall, the cover assembly snaps together for a tight fit.


MATERIAL: 6063-T6 Aluminum
FINISH: Clear anodized
MOVEMENT: Thermal (Horizontal/Vertical); Seismic (Lateral Shear)

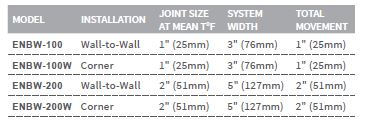

JOINT SIZE: 1" to 2"
LENGTH: 10 linear feet

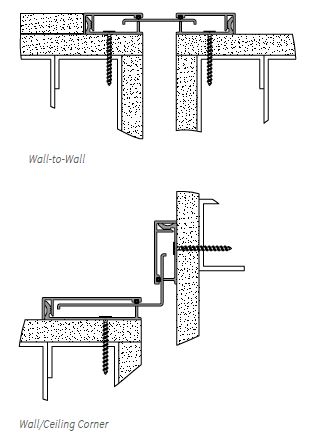

INSTALLATION: Wall or Ceiling
OPTIONS: Moisture barrier, fire barrier
