Summary and Description:

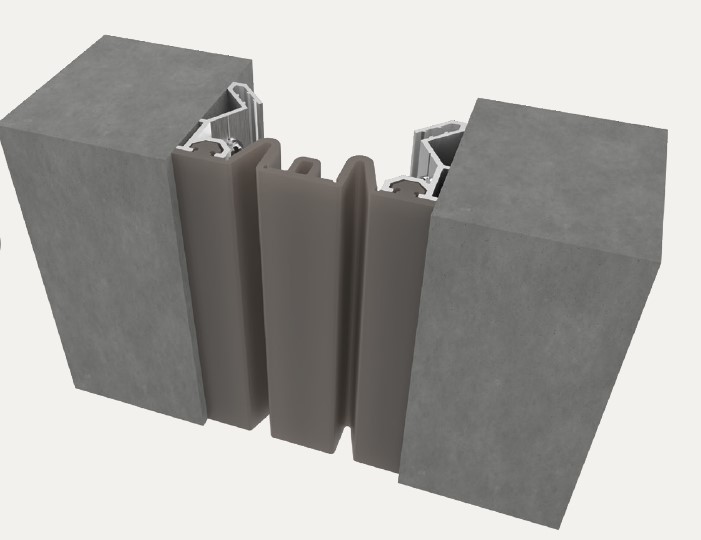

The Seismic Elastomeric Corridor System is dedicated to limiting the sight line of the expansion joint by mounting inside the joint opening and allows a color selection to match your surrounding substrate and finish material. This system accommodates seismic movement.

Features and Benefits:

MAXIMUM MOVEMENT: Deep ā€œVā€ design allows for maximum thermal and seismic movement.
COMPLEMENTARY SEAL COLORS: Available in four elastomeric seal color options: beige, white, gray, or black.
CONTINUOUS SIGHT LINE: This system can be used on walls, ceilings and corners to provide seamless and continuous aesthetics.


MATERIAL: 6063-T6 Aluminum and Santoprene Seal, Meets ASTM B209
MOVEMENT: Thermal (Horizontal/Vertical); Seismic (Lateral Shear)
MOUNTING: Recessed

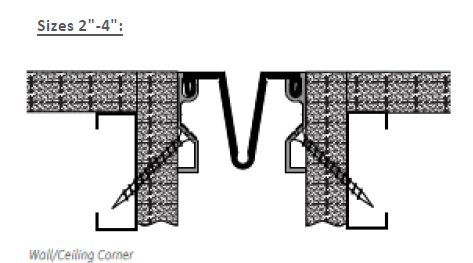

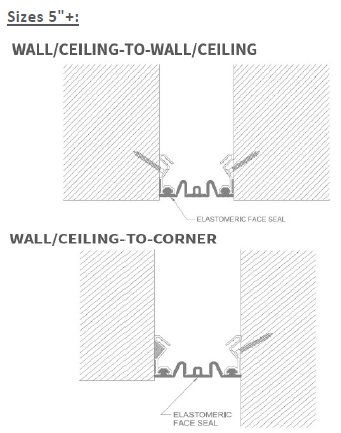

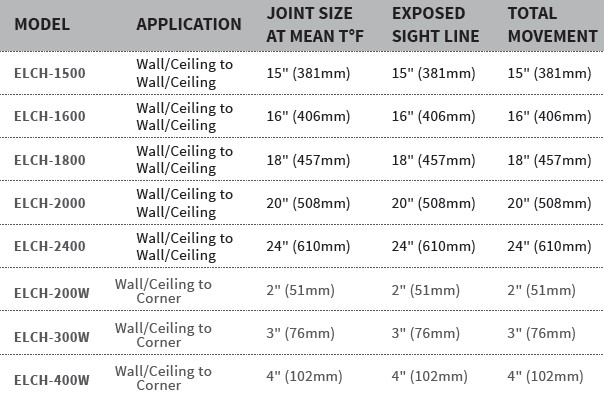

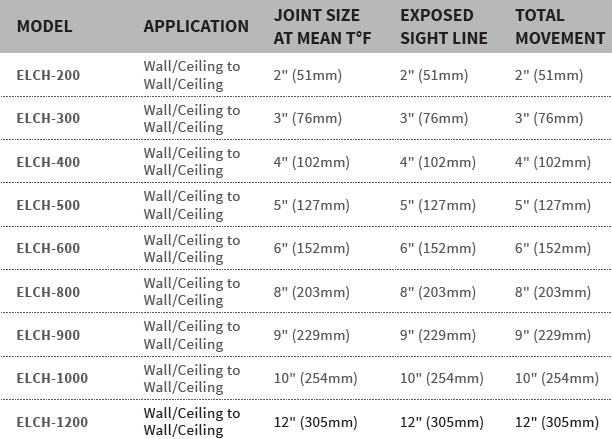

JOINT SIZE: 2" to 24"
LENGTH: Continuous
INSTALLATION: Wall or Ceiling
OPTIONS: Additional size and material options available upon request
