FG-Series (Flexible Gutter)

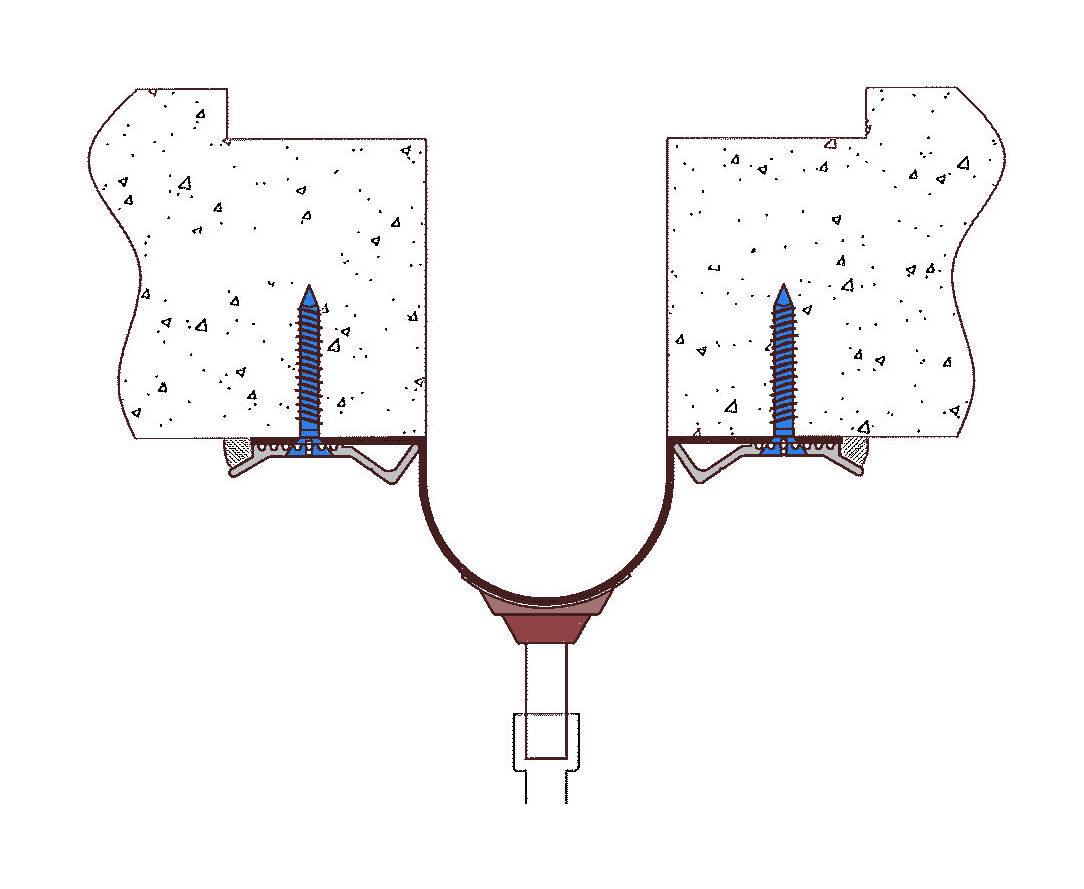

CLOSE-UP OF GUTTER SYSTEMSummary and Description:

The flexible gutter system incorporates a 60-mil, neoprene sheet, which is securely anchored to the concrete structure under an expansion joint system. The flexible neoprene sheeting allows for easy installation before or after the installation of an expansion joint system. The system will adapt to pre-cast concrete deck surfaces or cast in place structures. Once installed, this system provides a watertight seal, while flexing in response to fluctuations in joint width.

The membrane is attached to the underside of the joint location. Metal retainer bars securely hold the membrane in place while allowing for 100% movement in response to thermal and seismic activity. The rolls of material are available in 50 LF lengths and may be spliced to accommodate longer runs.
