CST(3FRH)-Series (Horizontal Fire-Rated Foam Seal)

CST(FR)Summary and Description:

The CST(3FRH) (horizontal application) seal features waterproof silicone faces on each side of a fire-retardant impregnated foam sealant, without the need for an additional set of intumescent bellows. The CST(3FRH) seal is designed for expansion joints in decks and floors where water-tightness, fire-rating and traffic durability are required. CST(3FRH) is a sound-attenuating, insulating, joint sealant intended for both retrofit and new horizontal expansion joints. No additional fire blankets, mineral wool, liquid sealants or cover plates are required, although the can be used with the joint system.

The CST(3FRH) provides a factory controlled, watertight, clean handling, UV stable, sound attenuating, energy efficient and fire-rated joint seal in a single, unified installation process. Depending on the application, CST(3FRH) can be supplied uncoated or coated on one or both sides. Uncoated material is to be used in enclosed applications only.

Features and Benefits:

Watertight: Installed with tension-less bellows, which when installed with an optional silicone bead on the weather face, maintains a watertight seal.
Fire-Rated: The fire-retardant-impregnated foam, when properly installed, provides a 3 hour fire rating in accordance with UL-2079.
Sound Attenuation: Minimizes sound transfer which can occur at expansion joints and wide openings.
Non-Invasive Anchoring: There is no drilling or modification to the substrate required. This includes embedded pins, anchors, screws, bolts, tracks, rails, flanges or cover plates. The system is secured to the joint substrate by means of the internal recovery force of the foam, the epoxy adhesive, and the optional injected sealant beads at the joint face.
Movement Capability: +/- 25% or +/- 50% depending on UL listing.
Joint –Size Variation: Additional product features include controlling uniform bellows appearance and the ability to handle variations in joint size through incremental sizing.
Factory Fabricated Transitions: Continuity of seal through changes in plane and direction is essential to system performance.

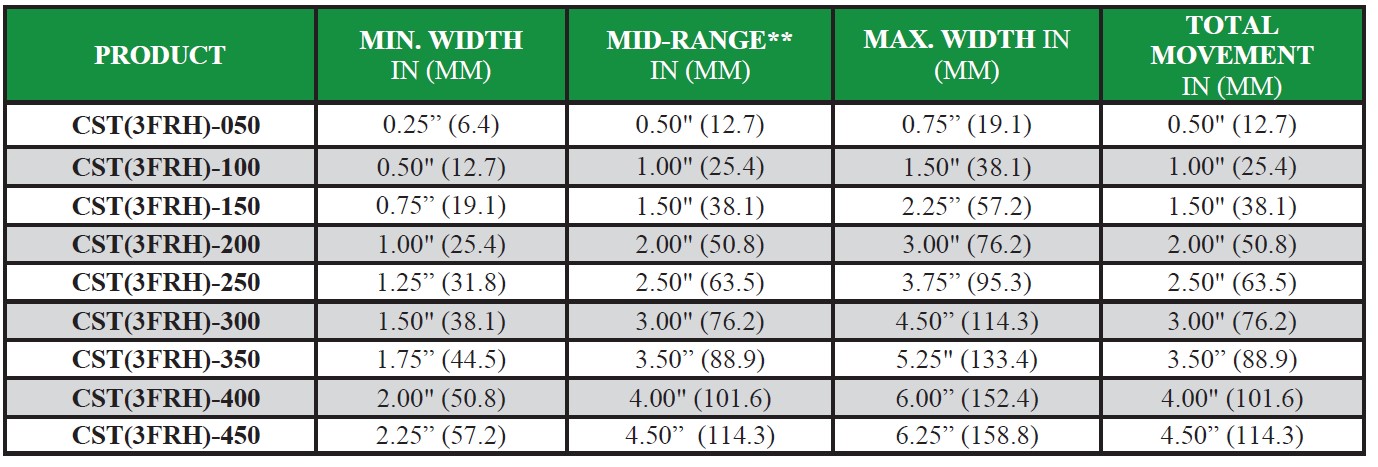

♦ Available sizes range from 1/2” (12mm) to 4 1/2” (112mm), with sizes 1” and greater supplied in 1/4” increments. Depth of the seal is 2”, 3” or 4” depending on listing. Listings with a 2” depth have a fire rating of 1 or 2 hours. Visit www.ul.com for more information.
♦ CST(3FRH) Silicone Faces: Dow Corning® 888 custom colors are available

CST(3FRH) Product Data Sheet

CST(3FRH) Installation Instructions

CST(3FRH) Specifications

CST(3FRH) Drawings (PDF)

CST(3FRH) Drawings (DWG)
