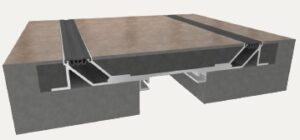

Summary and Description:

The Seismic Pan System is commonly used for stone, terrazzo tile, and concrete slabs as well as most traditional flooring materials in courtyards and walkways. It’s capable of accommodating lateral shear and multi-directional movement including vertical displacement.

Features and Benefits:

DEEP WELL PAN: Designed for terrazzo tile when large sections of tile are common.
DURABLE: The back-filled concrete strengthens the design for long lasting performance.


MATERIAL: 6063-T6 Aluminum
MOVEMENT: Thermal (Horizontal/Vertical), Seismic (Lateral Shear)
MOUNTING: Block out

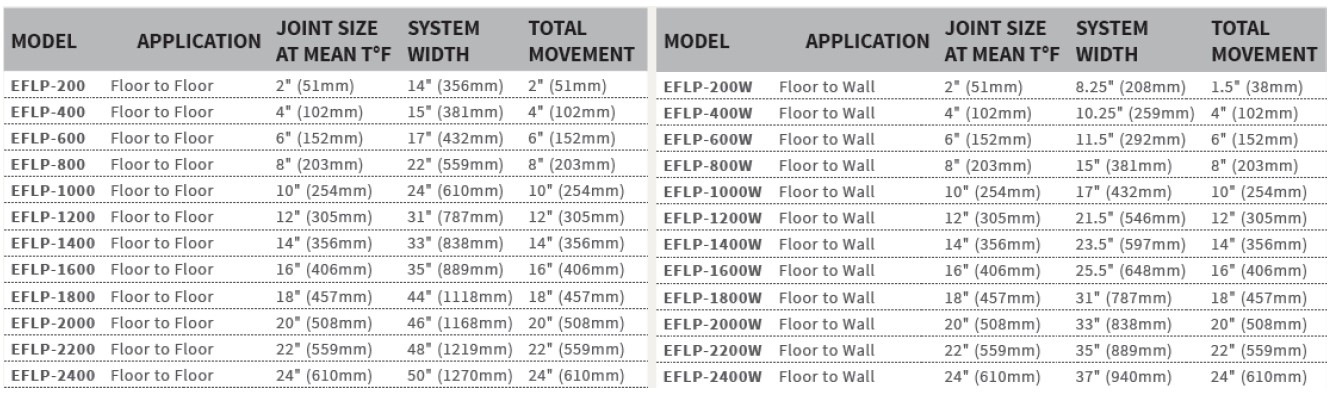

JOINT SIZE: 2" to 24"
LENGTH: 10 linear feet
LOAD: Pedestrian and Light Cart
OPTIONS: Moisture barrier, fire barrier
