Summary and Description:

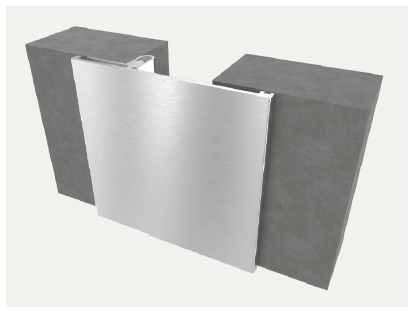

The Aluminum Wall and Ceiling system is capable of thermal movement. It mounts easily after final wall surface is complete. Standard with a clear anodize finish.

 Features and Benefits:

COORDINATING CORNERS: Available with corner option for a complete solution.
ARCHITECTURAL AESTHETICS: The sliding cover plate with a clear anodized finish provides a high-end appearance.
CONTINUOUS SIGHT LINE: This system can be used on walls, ceilings and corners to provide seamless and continuous aesthetics.


MATERIAL: 6063-T5 Aluminum, Meets ASTB B221
FINISH: Clear anodized
MOVEMENT: Thermal (Horizontal)

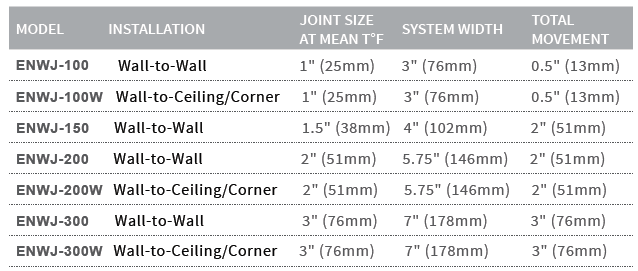

JOINT SIZE: 1" to 4"
LENGTH: 10 linear feet

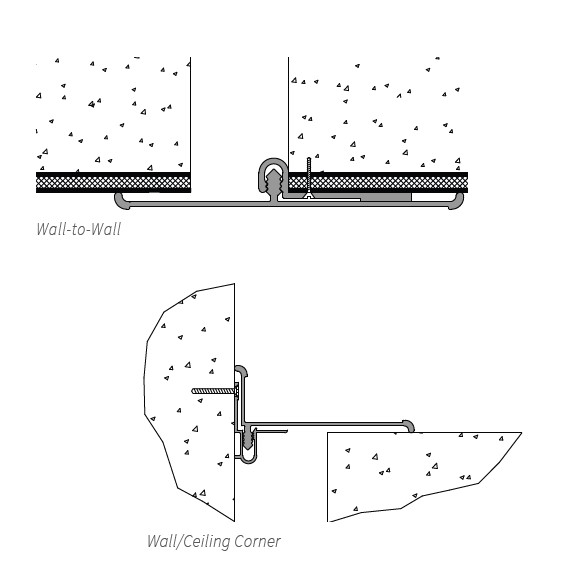

INSTALLATION: Wall or Ceiling
OPTIONS: Moisture barrier, fire barrier & additional materials, finishes and sizes upon request



ENWJ Product Data Sheet

ENWJ Installation Instructions

ENWJ Specifications

ENWJ Drawings (PDF)
