Summary and Description:

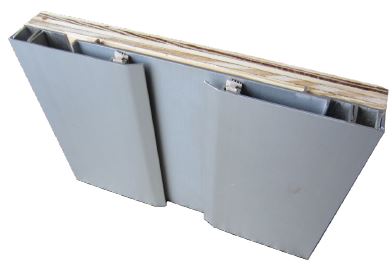

The Seismic Glide Wall XL System is a wall and ceiling expansion control system capable of following complex directional changes and integrates with a variety of wall and ceiling surface treatments. Seismic Glide XL is available in clear or color anodized aluminum, brass, or stainless steel to create a high end elegant appearance at an economical price.

Features and Benefits:

EXTRA LARGE OPENINGS: For openings larger than 2 inches, this system is designed to accommodate with lateral shear.
REDUCED AIR INFILTRATION: The assembly includes a gasket strip on both sides to limit air flow through the joint.


MATERIAL: 6063-T6 Aluminum
FINISH: Clear anodized
MOVEMENT: Thermal (Horizontal/Vertical); Seismic (Lateral Shear)

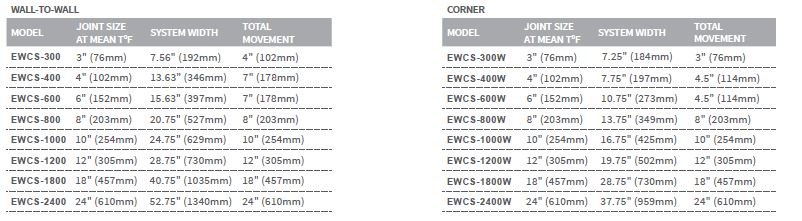

JOINT SIZE: 3" to 24"
LENGTH: 10 linear feet
INSTALLATION: Wall or Ceiling
OPTIONS: Moisture barrier, fire barrier, brass, stainless steel




EWCS Product Data Sheet

EWCS Installation Instructions

EWCS Specifications

EWCS Drawings (PDF)
