CSCR-Series (Chemical Resistant)

CSCRSummary and Description:

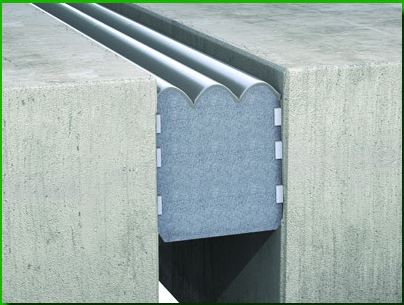

The Contour Seal Chemical Resistant (CSCR) is composed of a durable, closed cell ethylene vinyl acetate (EVA) foam with factory applied NSF 61, Sec. 6 approved polysulfide coating. The system has been developed to perform under extreme conditions such as those found in vertical and horizontal applications including DOT, water treatment and parking structure type expansion joints.

The CSCR provides a watertight, dustproof, airtight, UV stable, chemically resistant, soundproof, and insulated primary seal. It is a preformed, compressible system that is impermeable to water and when bonded in place provides a watertight seal. Once the material is installed in the joint, the material adapts to the width of the joint and the irregularities of the substrate provided such profile changes are not sudden or extreme.

Features and Benefits:

♦ Can accommodate rapid rates of joint movement
♦ Made from a monolithic piece of foam that will not delaminate like multi-layer products
♦ Consistent depth of product
♦ Used for joints up to 8” wide
♦ Allows for up to 50% (+/- 25%) movement
♦ Can be permanently bonded to the joint substrate
♦ Not based on asphaltic or bitumastic impregnation
♦ Environmentally safe; no ChloroFluoroCarbons (CFCs)
♦ Sizes available in 1/4” increments
♦ Standard color: Gray






CSCR Product Data Sheet

CSCR Installation Instructions

CSCR Specifications

CSCR Physical Properties & Chemical Resistance Chart

CSCR Drawings (PDF)

CSCR Drawings (DWG)
