Floor (Horizontal) Appliations (Interior)



Image Product Name Features and Benefits Movement Capabilities Available Joint Sizes

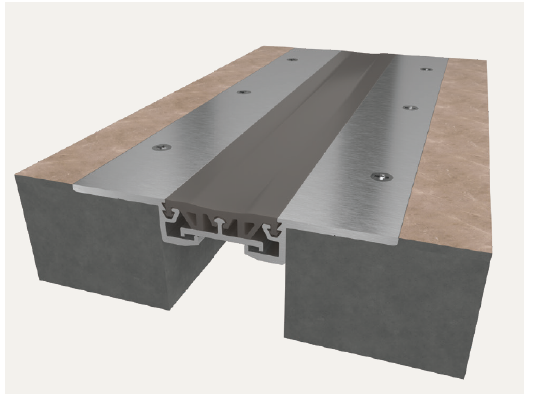

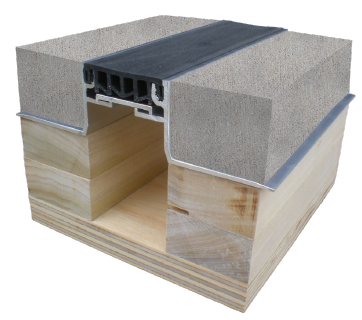

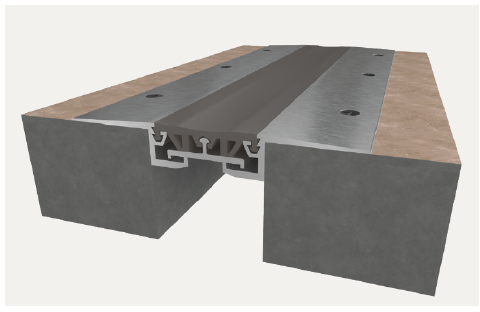

ELCF/S/C/T-Series

♦ COORDINATING CORNERS: Available with corner option for a complete floor solution.
♦ CONTINUOUS SIGHT LINE: Available with coordinating wall and ceiling systems to provide an aesthetically pleasing appearance.
♦ COMPLEMENTARY SEAL COLORS: Available in four elastomeric seal color options: beige, white, gray, or black.

+/- 25% 1" or 2"

(25mm or 51)

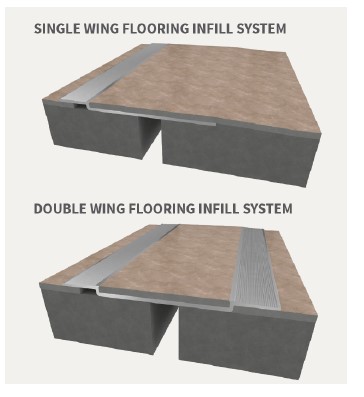

ESA/EDA-Series

♦ COORDINATE WITH FLOORING: Seamless integration with existing VCT, carpet and tile flooring.
♦ DOUBLE WING OPTION: Add a double sight line to coordinate with a matching wall system.
♦ ADA COMPLIANT: This system is not a trip hazard as the no-bump design provides a finished flush floor transition

+/- 25%



2"

(51mm)

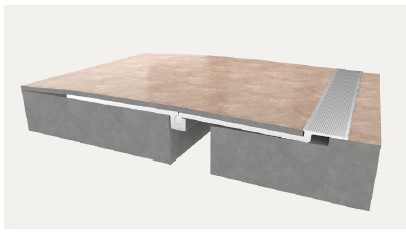

EFA-Series

♦ HINGED DESIGN: Constructed with a single wing, hinged design to allow for limited vertical movement.
♦ INTEGRATED FLOORING: Designed to coordinate with main flooring material and accepts floor infill.
♦ SURFACE MOUNT: No block out is required. Simply screw onto subfloor.

+/- 16.5% (total 33%) 1" to 6"

(25mm to 152)

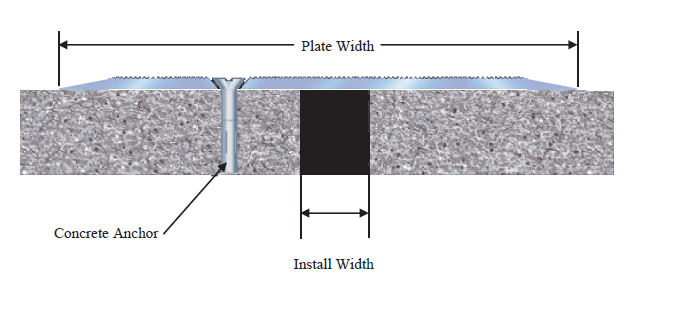

Cover plate

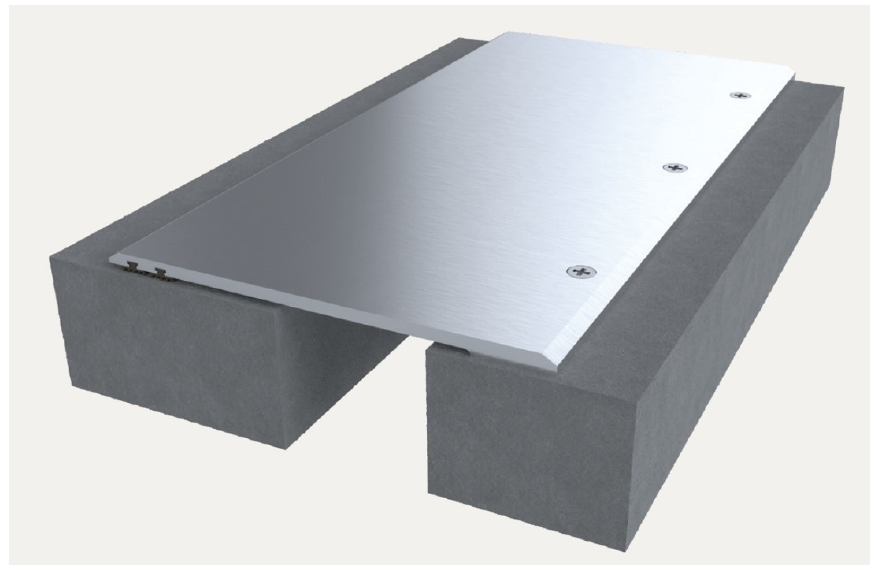

ALCP-Series ♦ Bridges the joint gap with minimal preparation for maximum protection
♦ Recommended areas includes warehouses, manufacturing facilities, retail spaces and stock rooms, where the finished floor is concrete.
♦ Made from 6061-T5 aluminum alloy that is secured on one side of the floor by pre-drilled, countersunk holes, anchored into the concrete; the anchors are then set into a bed of epoxy adhesive to assure a sound anchor
♦ Tested to ASTM D-1399 for 500 cycles of compression, tension and deflection
♦ Optional accents such as color anodize and EPDM-looped moisture barriers are available
♦ The ALCP-Series is tested to ADA compliance
♦ 14" plate (ALCP-600) is available for traffic grade applications
N/A

Plate Widths:

6" to 14"

(152.4 mm to 355.6)

ALHCP ALHCP-Series ♦ Bridges the joint gap with minimal preparation for maximum protection
♦ The hinged feature allows for differences in height and movement between the floor slabs
♦ Made from 6061-T5 or 6063-T6 aluminum alloy that is secured on one side of the floor by pre-drilled, countersunk holes anchored into the concrete. The anchors are set into a bed of epoxy adhesive to assure a sound anchor
♦ Tested to ASTM D-1399 for 500 cycles of compression, tension and deflection
♦ Optional accents such as color anodize and EPDM-looped moisture barriers are available
♦ The ALHCP-Series is tested to ADA compliance
♦ Available for both floor-to-floor or floor-to-wall applications
N/A

Plate Widths:

Floor-to-Floor:
8" to 19.8"
(203.2 mm to 502.9)

Floor-to-Wall:
5" to 11"
(127.0 mm to 279.4)

ERA-Series

♦ ANTI-SLIP SURFACE: Designed with serrations to create an anti-slip surface.
♦ SURFACE MOUNT: No block out is required - simply screw onto the existing sub-floor.
♦ ARCHITECTURAL METAL: The entire system of metal is exposed for architectural aesthetics. The neighboring flooring infill simply butts against the system.

25%

1"

(25mm)

CSS(H)-Series (Interior)

♦ Can accommodate rapid rates of joint movement
♦ Supplied in pre-compressed state for ease of installation
♦ Two-part epoxy supplied for installation in horizontal applications
♦ Does not rely on the silicone coating or on the adhesion of a field applied bead of sealant to provide a watertight seal
♦ Consistent depth of product
♦ Excellent compression recovery
♦ Permanently elastic and weather-tight
♦ Allows for up to 100% movement (+/- 50%)
♦ Not based on asphaltic or bitumastic impregnation
♦ Available in Dow Corning® 790 and Pecora 890 Colors: Actual Colors may vary. See Dow Corning® 790 and Pecora 890 Color Chart for exact color match.
♦ Sizes available in 1/4” increments

+/- 50%

1/2" to 8"

(12.7mm to 203.2)

ENBR-Series

♦ EASIER INSTALLATION: The beveled edge relief on the extrusion virtually eliminates any need to remove concrete from the block-out.
♦ FLOORING INFILL: Designed with a recess for vinyl, carpet or tile (VCT) flooring to cover the aluminum plate and reduce the overall sight-line.
♦ COORDINATING CORNERS: Available with corner option for a complete floor solution.

Varies by joint size - please refer to movement chart 1" to 4"

(25 mm to 102)

ENBF-Series

♦ EASIER INSTALLATION: The beveled edge relief on the extrusion virtually eliminates any need to remove concrete from the block-out.
♦ ANTI-SLIP SURFACE: The no bump, ribbed anti-slip surface provides safe functionality for foot and cart traffic.
♦ COORDINATING CORNERS: Available with corner option for a complete floor solution.

Varies by joint size - please refer to movement chart 1" to 4"

(25 mm to 102)

ETMM-Series

♦ COORDINATING CORNERS: Available with corner option for a complete floor and wall solution.
♦ COORDINATION: Designed for both horizontal and vertical applications, this system provides a continuous coordinated look and feel.
♦ COMPLEMENTARY SEAL COLORS: Available in four elastomeric seal color options: beige, white, gray, or black.

Varies by joint size - please refer to movement chart

2" to 6"

(51mm to 152)

ESFNB-Series

♦ ROBUST SYSTEM: Engineered with a seismic centering bar and two rubber seals with impact and movement in mind.
♦ COMPLEMENTARY DESIGN: The aluminum slide plate is designed with a recessed channel to allow floor/wall infill for seamless design.

Varies by joint size - please refer to movement chart

2" to 24"

(51mm to 610)

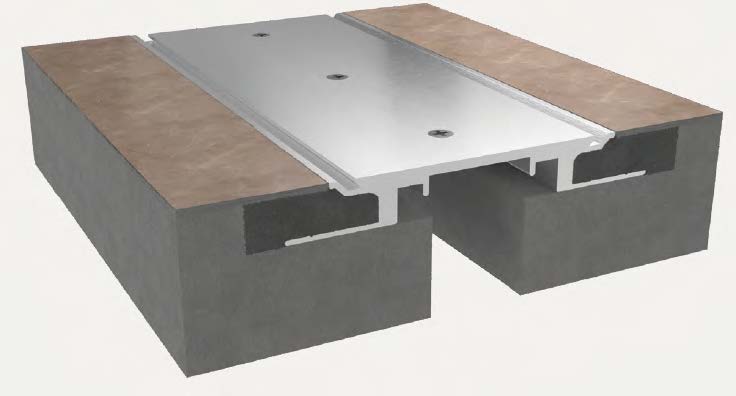

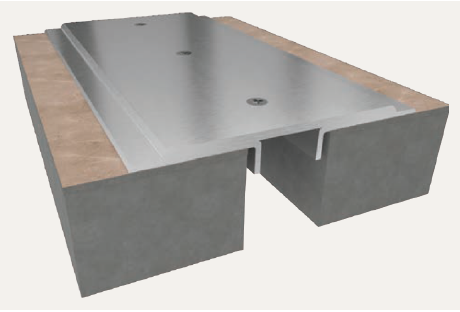

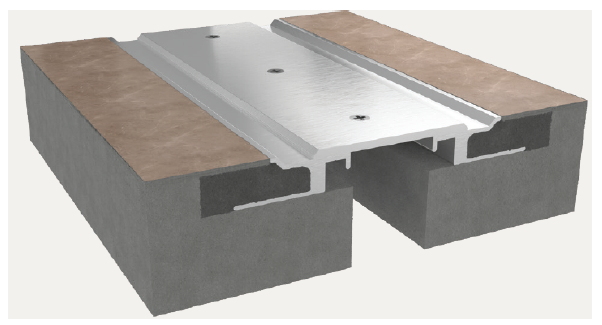

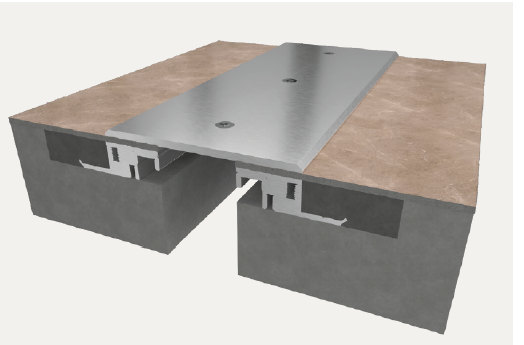

ESFG/E/C/P-Series

♦ SEISMIC TECHNOLOGY: The cover plate stays centered over openings before, during and after a seismic event with the use of the seismic centering bar.
♦ ANTI-SLIP SURFACE: Designed with serrations to create an anti-slip surface.
♦ ADA COMPLIANT: Heavy-duty loading requirements are met while maintaining a smooth ADA compliant transition.

Varies by joint size - please refer to movement chart

2" to 24"

(51mm to 610)

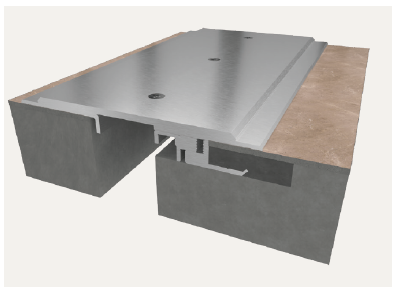

ESFB-Series

♦ SEISMIC TECHNOLOGY: The cover plate stays centered over openings before, during and after a seismic event with the use of the seismic centering bar.
♦ ANTI-SLIP SURFACE: Designed with serrations to create an anti-slip surface.
♦ ADA COMPLIANT: Heavy-duty loading requirements are met while maintaining a smooth ADA compliant transition.

Varies by joint size - please refer to movement chart

4" to 18"

(102mm to 457)

ESFX-Series

♦ SEISMIC TECHNOLOGY: The cover plate stays centered over openings before, during and after a seismic event with the use of the seismic centering bar.
♦ ANTI-SLIP SURFACE: Designed with serrations to create an anti-slip surface.
♦ ADA COMPLIANT: Heavy-duty loading requirements are met while maintaining a smooth ADA compliant transition.

Varies by joint size - please refer to movement chart

2" to 24"

(51mm to 610)

EFLP-Series

♦ DEEP WELL PAN: Designed for terrazzo tile when large sections of tile are common.
♦ DURABLE: The back-filled concrete strengthens the design for long lasting performance.

Varies by joint size - please refer to movement chart

2" to 18"

(51mm to 457)

EFLC-Series

♦ DURABLE: The seismic glide system is an ideal option for commercial environments.
♦ MINIMAL SIGHT LINE: With the sliding surface, the sight line remains limited and unchanged as the joint moves.
♦ COORDINATING CORNERS: Available with a corner option for a complete floor solution.

+/- 50%

1" to 6"

(25mm to 152)
