ELCE-Series

Summary and Description:

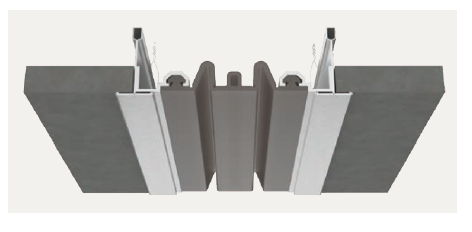

The Seismic Elastomeric Ceiling System uses an aluminum channel attached to the grid system above the sight line. The finished Santoprene seal comes in four colors to match your surrounding substrate and finish material. This system accommodates seismic movement.

Features and Benefits:

ACOUSTIC CEILING: Fully integrated with suspended ceiling grid system.
MAXIMUM MOVEMENT: Deep ā€œVā€ design allows for maximum thermal and seismic movement.
COMPLEMENTARY SEAL COLORS: Available in four elastomeric seal color options: beige, white, gray or black.

Details:

MATERIAL: 6063-T6 Aluminum with Rubber Seal
FINISH: Mill
MOVEMENT: Thermal (Horizontal/Vertical); Seismic (Lateral Shear)
MOUNTING: Flush - Suspended

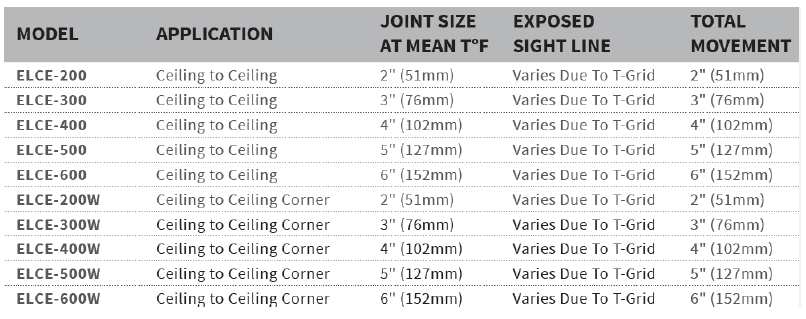

JOINT SIZE: 1" to 6"
LENGTH: Continuous
INSTALLATION: Ceiling
OPTIONS: Seal color







ELCE Product Data Sheet

ELCE Installation Instructions

ELCE Specifications

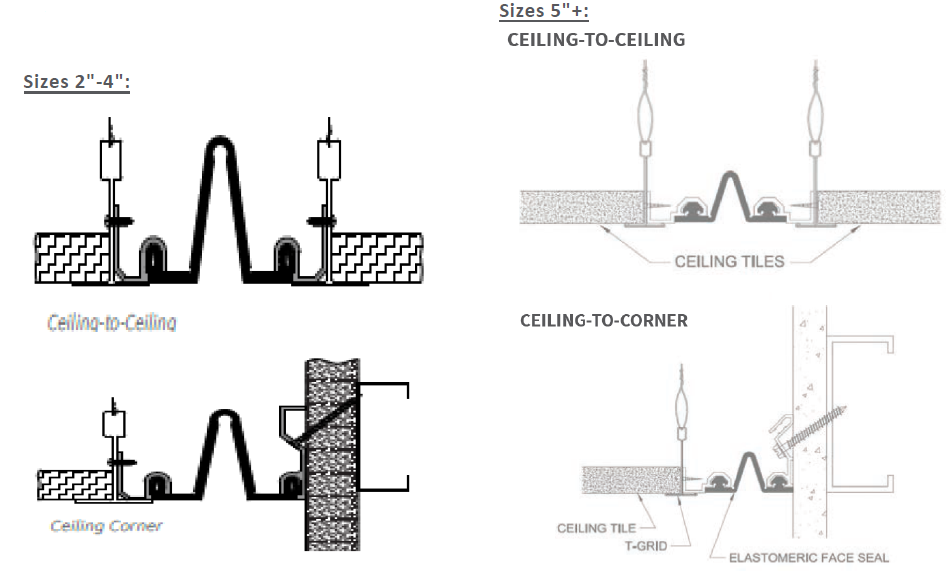

ELCE Drawings (PDF)
