ESA/EDA-Series

Summary and Description:

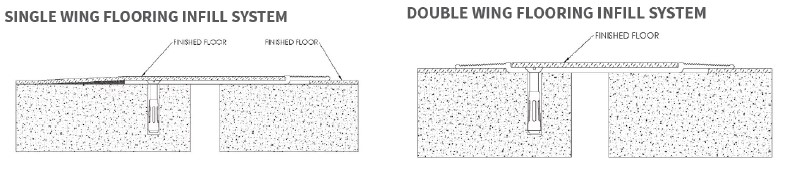

The Single Wing (ESA) and Double Wing (EDA) Flooring Infill Systems are designed to cover thermal expansion joint openings. Constructed of aluminum and designed to integrate with carpet, tile and VCT flooring, these systems provide a minimal 1-1/2 inch sight line.

Features and Benefits:

COORDINATE WITH FLOORING: Seamless integration with existing VCT, carpet and tile flooring.
DOUBLE WING OPTION: Add a double sight line to coordinate with a matching wall system.
ADA COMPLIANT: This system is not a trip hazard as the no-bump design provides a finished flush floor transition.

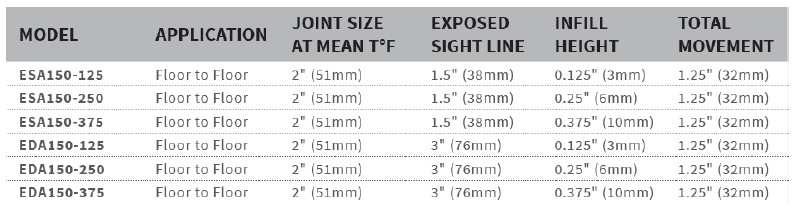

Details:

MATERIAL: 6063-T6 Aluminum
FINISH: Mill
MOVEMENT: Thermal, Horizontal
MOUNTING: Surface
JOINT SIZE: Up to 2"
LENGTH: 10 linear feet
LOAD: Pedestrian and Light Cart
INSTALLATION: Floor
OPTIONS: Moisture barrier, fire barrier
