Summary and Description:

The Architectural Seismic System is designed to cover expansion control openings in structural, high movement floor joints, when standard aluminum is acceptable.

Features and Benefits:

SEISMIC TECHNOLOGY: The cover plate stays centered over openings before, during and after a seismic event with the use of the seismic centering bar.
ADA COMPLIANT: Heavy-duty loading requirements are met while maintaining a smooth ADA compliant transition.

Details:

MATERIAL: 6063-T5 Aluminum, Meets ASTM B221 and B209 | 6061-T6 Aluminum, Meets ASTM B221 and B209 | 5052-H32 Aluminum, Meets ASTM B221 and B209
FINISH: Mill
MOVEMENT: Thermal (Horizontal/Vertical), Seismic (Lateral Shear)
MOUNTING: Block out

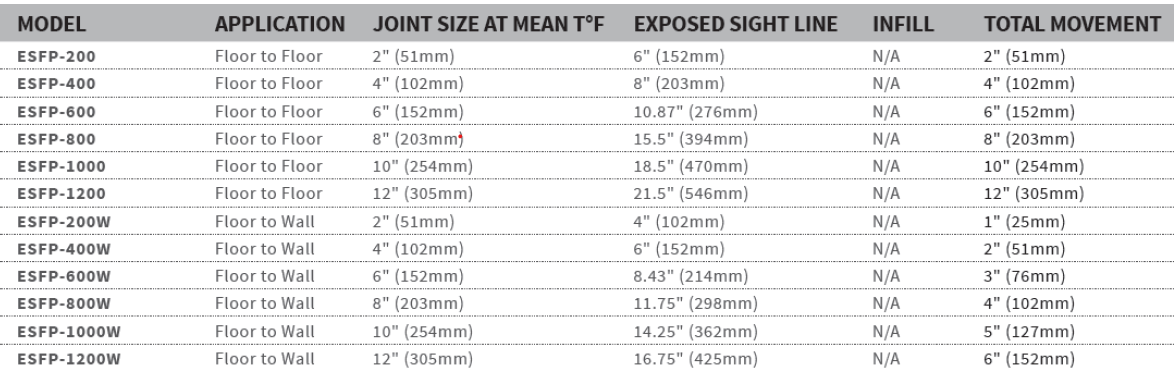

JOINT SIZE: 2" to 12"
LENGTH: 10 linear feet
LOAD: Pedestrian and Light Cart
INSTALLATION: Floor
OPTIONS: Moisture barrier, fire barrier
